The ALZ12F12 is a 15.7mm height 1A/1C 16A power relay. It is widely applied in household electrical appliances, office equipment and industrial equipment.
Parametrics
ALZ12F12 absolute maximum ratings: (1)Contact Form: SPDT (1 Form C); (2)Contact Rating (Current): 16A; (3)Switching Voltage: 440VAC - Max; (4)Coil Type: Non Latching; (5)Coil Current: 33.3mA; (6)Coil Voltage: 12VDC; (7)Turn On Voltage (Max) 8.4 VDC; (8)Turn Off Voltage (Min) 1.2 VDC ; (9)Operate Time: 15ms; (10)Release Time: 5ms; (11)Coil Power: 400mW; (12)Coil Resistance: 360Ohms; (13)Operating Temperature: -40℃ to 105℃.
Features
ALZ12F12 features: (1)Low profile type with height of 15.7 mm; (2)High insulation resistance; (3)Superior heat resistance; (4)Low operating power; (5)Superior heat resistance and tracking resistance.

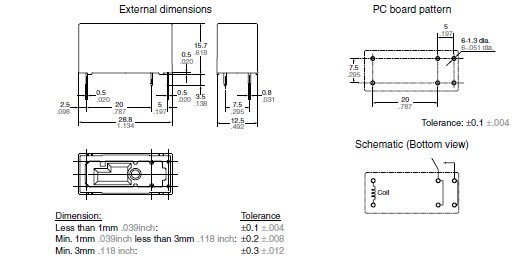

Diagrams
