Product Summary
The DS2Y-SL2-DC5V is a miniature relay. It is widely used in telecommunication equipment, office equipment, computer peripherals, security alarm systems and medical equipment.
Parametrics
DS2Y-SL2-DC5V absolute maximum ratings: (1)Mounting Type: Through Hole; (2)Termination Style: PC Pin; (3)Contact Form: DPDT (2 Form C); (4)Contact Rating (Current): 2A; (5)Switching Voltage: 250VAC, 220VDC; (6)Coil Type: Latching, Dual Coil; (7)Coil Current: 36mA; (8)Coil Voltage: 5VDC; (9)Turn On Voltage (Max): 3.5VDC.
Features
DS2Y-SL2-DC5V features: (1)2 Form C contact; (2)High sensitivity-200 mW nominal operating power; (3)High breakdown voltage 1500 V FCC surge between open contacts; (4)DIP-2C type matching 16 pin IC socket; (5)Sealed construction.

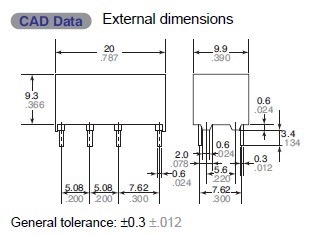

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS2Y-SL2-DC5V |
|
RELAY GENERAL PURPOSE DPDT 2A 5V |
Data Sheet |
Negotiable |
|
||||
|
DS2Y-SL2-DC5V-R |
|
RELAY GENERAL PURPOSE DPDT 2A 5V |
Data Sheet |
Negotiable |
|
||||
|
DS2Y-SL2-DC5V-TB |
|
RELAY GENERAL PURPOSE DPDT 2A 5V |
Data Sheet |
Negotiable |
|
||||
