Product Summary
The AQV215 is a GU PhotoMOS. It is widely applied in high-speed inspection machines, telephone equipment, data communication equipment and computer. The AQV215 controls low-level input signals and load voltage.
Parametrics
AQV215 absolute maximum ratings: (1)I/O isolation: Standard 1,500V AC; (2)Load voltage: 100V; (3)Load current: 320mA; (4)LED forward current, IF: 50mA; (5)LED reverse voltage, VR: 5V; (6)Peak forward current, IFP: 1A; (7)Power dissipation, Pin: 75mW; (8)Power dissipation, Pout: 500mW; (9)Total power dissipation, PT: 550mW; (10)I/O isolation voltage, Viso: 1,500V AC; (11)Temperature limits Operating, Topr: –40℃ to +85℃, –40°F to +185°F; (12)Temperature Storage Tstg –40℃ to +100℃, –40°F to +212°F.
Features
AQV215 features: (1)Controls low-level analog signals; (2)Control with low-level input signals; (3)Controls various types of loads; (4)Optical coupling for extremely high isolation; (5)Eliminates the need for a counter; (6)Stable on resistance; (7)Low-level off state leakage current; (8)Eliminates the need for a power supply to drive the power MOSFET; (9)Low thermal electromotive force.

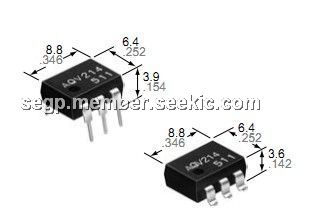

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AQV215 |
Panasonic Electric Works |
Solid State Relays 100v 320mA DIP Form A Norm-Open |
Data Sheet |
|
|
||||||||||||
 |
AQV215AX |
Panasonic Electric Works |
Solid State Relays RELAY OPTO AC/DC 100V 320MA 6SMD |
Data Sheet |
|
|
||||||||||||
 |
AQV215S |
Panasonic Electric Works |
Solid State Relays 300MA 100V 6PIN SPST |
Data Sheet |
|
|
||||||||||||
 |
AQV215SX |
Panasonic Electric Works |
Solid State Relays 100v 320mA SOP Form A Norm-Open |
Data Sheet |
|
|
||||||||||||
|
AQV215SZ |
Panasonic Electric Works |
Solid State Relays 100v 320mA SOP Form A Norm-Open |
Data Sheet |
|
|
||||||||||||
 |
AQV215AZ |
Panasonic Electric Works |
Solid State Relays 100v 320mA DIP Form A Norm-Open |
Data Sheet |
|
|
||||||||||||
|
AQV215A |
Panasonic Electric Works |
Solid State Relays 100v 320mA DIP Form A Norm-Open |
Data Sheet |
|
|
||||||||||||
