Product Summary
The HC4-H-AC240V is a relay for control panel of 1A to 10A (1c/2c/3c/4c). It is widely applied in factory automation equipment and automotive devices, as well as control panels, power supply equipment, molding equipment, machine tools, welding equipment, agricultural equipment, etc.
Parametrics
HC4-H-AC240V absolute maximum ratings: (1)Contact Form: 4PDT (4 Form C); (2)Contact Rating (Current): 5A; (3)Switching Voltage: 250VAC; (4)Coil Type: Non Latching; (5)Coil Current: 5mA; (6)Coil Voltage: 240VAC; (7)Turn On Voltage (Max): 192VAC; (8)Turn Off Voltage (Min): 72VAC; (9)Termination Style: Plug In; (10)Contact Material: Silver Nickel (AgNi); (11)Operate Time: 20ms; (12)Release Time: 20ms; (13)Coil Power: 1.2VA; (14)Operating Temperature: -50℃ to 70℃.
Features
HC4-H-AC240V features: (1)Standard type, Amber sealed type and Keep type; (2)Rich lineup includes relays with operating indication, with diode and with CR circuit; (3)Full range of types Plug-in type, PC board type and TM type; (4)Sockets and terminal sockets are available.

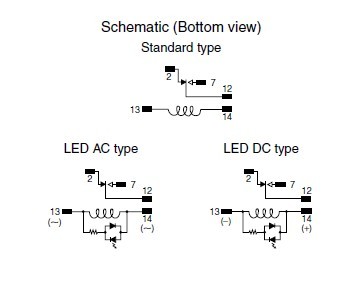

Diagrams
