Product Summary
The DS2E-S-DC48V is a long seller backed DS relay with product variety and high reliability.
Parametrics
DS2E-S-DC48V absolute maximum ratings: (1)Contact Material: Silver (Ag), Gold (Au); (2)Coil Power: 200mW; (3)Coil Resistance: 11.52KOhms; (4)Operating Temperature: -40℃ to 70℃; (5)Contact Form: DPDT (2 Form C); (6)Contact Rating (Current): 2A; (7)Switching Voltage: 250VAC, 220VDC; (8)Coil Type: Non Latching; (9)Coil Current: 4.2mA; (10)Coil Voltage: 48VDC; (11)Turn On Voltage (Max): 33.6VDC; (12)Turn Off Voltage (Min): 4.8VDC.
Features
DS2E-S-DC48V features: (1)Breakthrough height of 9.8 mm; (2)Suitable for use in difficult environments; (3)Can be used with automatic solder and automatic wash systems; (4)Gold-clad twin contacts ensure high reliability; (5)Polarized magnetic circuits realize resistance to shock and vibration; (6)DIL terminal array enables use of IC sockets; (7)Widening scope of application with multicontact latching.

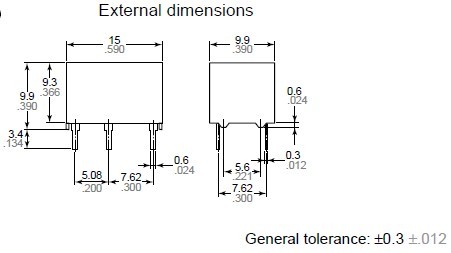

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DS2E-S-DC48V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 48VDC DPDT SEALED PCB |
Data Sheet |
|
|
|||||||||||||
DS2E-S-DC48V-R |
Panasonic Electric Works |
Low Signal Relays - PCB 48VDC 200MW DIP RELAY MINI |
Data Sheet |
Negotiable |
|
|||||||||||||
DS2E-S-DC48V-TB |
Panasonic Electric Works |
Low Signal Relays - PCB 2 Form C, 48VDC 2 Form C 200mW Type |
Data Sheet |
|
|
