Product Summary

The HE1AN-P-DC12V-Y5 is a 1a 35A/48A power relay, which is ideal for solar inverter.

Parametrics

HE1AN-P-DC12V-Y5 absolute maximum ratings: (1)Manufacturer: Panasonic; (2)Contact Form: 1 Form A (SPST-NO); (3)Coil Voltage: 12 VDC; (4)Contact Rating: 48A at 250V; (5)Contact Termination: Solder Terminal; (6)Mounting Style: PCB; (7)Power Consumption: 1920 mW; (8)Contact Material: Silver Nickel; (9)Coil Termination: Solder Terminal; (10)Contact Material: Silver Tin Oxide (AgSnO); (11)Operate Time: 30ms; (12)Release Time: 10ms; (13)Coil Power: 1.92W; (14)Coil Resistance: 75Ohms; (15)Switching Voltage: 277VAC, 30VDC; (16)Coil Type: Non Latching; (17)Coil Current: 160mA; (18)Turn On Voltage (Max): 8.4VDC; (19)Turn Off Voltage (Min): 1.2VDC.

Features

HE1AN-P-DC12V-Y5 features: (1)35A/48A current at 250V AC; (2)Contact gap: 2.5 mm (VDE0126 compliant); (3)Contributes to energy saving in devices thanks to reduced coil hold voltage; (4)High insulation and 10,000V surge breakdown voltage (between contacts and coil) achieved.; (5)Conforms to various safety standards.

Diagrams

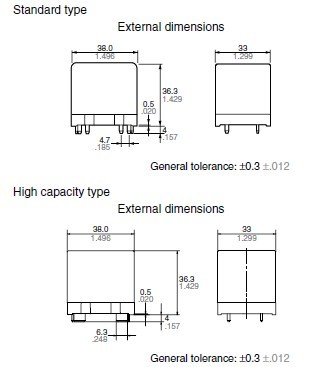

HE1AN-P-DC12V-Y5 DIMENSION

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HE1aN-P-DC12V-Y5
HE1aN-P-DC12V-Y5
Panasonic Electric Works
General Purpose / Industrial Relays 1 Form A 70% Nom V Coil Voltage 12
Data Sheet
0-1: $13.48
1-25: $13.07
25-50: $12.68
50-100: $11.92
