Product Summary

The S2EB-48V is a S-relay. The typical applications of the device include Telecommunications equipment, data, processing equipment, facsimiles, alarm and equipment, measuring equipment.

Parametrics

S2EB-48V absolute maximum ratings: (1)Standard Package: 50; (2)Contact Rating (Current): 4A; (3)Switching Voltage: 250VAC, 48VDC - Max; (4)Coil Type: Non Latching; (5)Coil Current: 5.6mA; (6)Coil Voltage: 48VDC; (7)Turn On Voltage (Max): 33.6 VDC; (8)Turn Off Voltage (Min): 4.8 VDC; (9)Operate Time: 15ms; (10)Release Time: 10ms; (11)Coil Power: 271 mW; (12)Coil Resistance: 8.5K Ohms; (13)Operating Temperature: -55 to 65℃.

Features

S2EB-48V features: (1)Compact with high sensitivity; (2)Strong resistance to vibration and shock; (3)High reliability and long life; (4)Ability to provide wide-ranging control; (5)Latching types available; (6)Wide variety of contact formations available; (7)Low thermal electromotive force relay; (8)DIL terminal array; (9)Relays that push the boundaries of relay efficiency; (10)Sockets are available.

Diagrams

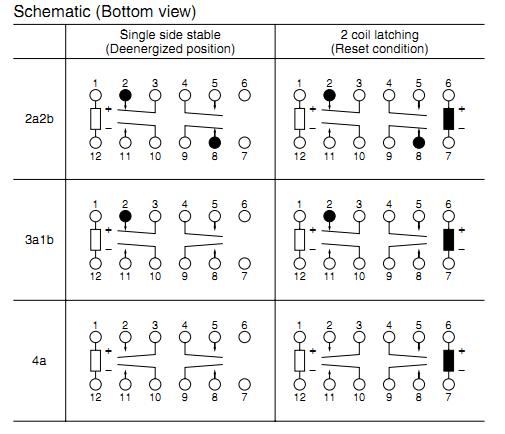

S2EB-48V schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S2EB-48V
S2EB-48V

Panasonic Electric Works

General Purpose / Industrial Relays 4A 48VDC DPDT AMBER SEAL PCB

Data Sheet

0-1: $12.05
1-25: $11.08
25-50: $9.85
50-100: $8.36
