Product Summary
The HE2AN-S-DC24V is a HE relay. The typical applications of the device include office equipment, industrial equipemnt and home applications.
Parametrics
HE2AN-S-DC24V absolute maximum ratings: (1)Contact Rating (Current): 25A; (2)Switching Voltage: 277VAC, 30VDC - Max; (3)Coil Current: 80mA; (4)Coil Voltage: 24VDC; (5)Turn On Voltage (Max): 16.8 VDC; (6)Turn Off Voltage (Min): 2.4 VDC; (7)Operate Time: 30ms; (8)Release Time: 10ms; (9)Operating Temperature: -50 to 55℃; (10)Coil Power: 1.92 W; (11)Coil Resistance: 300 Ohms.
Features
HE2AN-S-DC24V features: (1)Excellent resistance to contact welding; (2)High-capacity and long life; (3)Excellent surge resistance; (4)Compatible with all major safety standards; (5)Terminals are available.

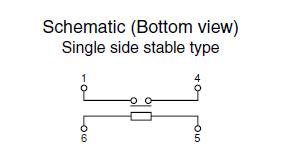

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

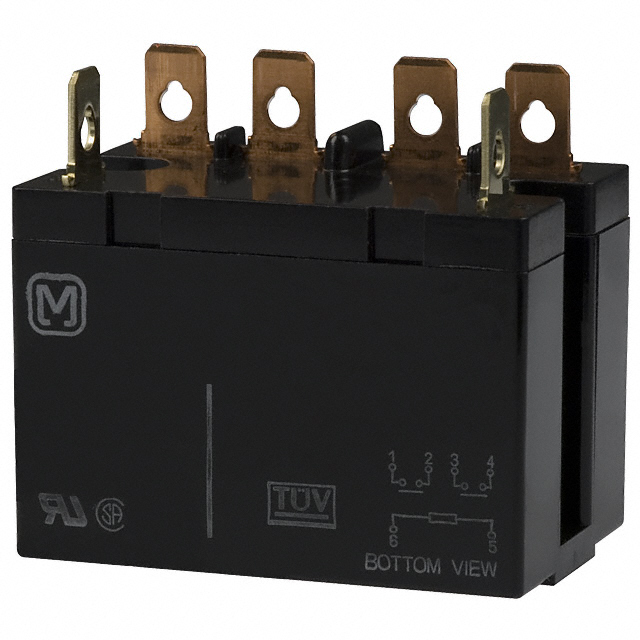

 HE2AN-S-DC24V |
Panasonic Electric Works |
General Purpose / Industrial Relays 20A 24VDC DPST SCREW |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
HE2AN-AC120V |
Panasonic Electric Works |
General Purpose / Industrial Relays 2 Form A 120VAC 30A 25A 277VAC AC Coil |
Data Sheet |
|
|
||||||||||||
|
HE2AN-AC12V |
Panasonic Electric Works |
General Purpose / Industrial Relays 2 Form A 12VAC 30A 25A 277VAC AC Coil |
Data Sheet |
|
|
||||||||||||
|
HE2AN-AC240V |
Panasonic Electric Works |
General Purpose / Industrial Relays 2 Form A 240VAC 30A 25A 277VAC AC Coil |
Data Sheet |
|
|
||||||||||||
|
HE2AN-AC24V |
Panasonic Electric Works |
General Purpose / Industrial Relays 2 Form A 24VAC 30A 25A 277VAC AC Coil |
Data Sheet |
|
|
||||||||||||
|
HE2AN-AC48V |
Panasonic Electric Works |
General Purpose / Industrial Relays 2 Form A 48VDC 30A 25A 277VAC AC Coil |
Data Sheet |
|
|
||||||||||||
 |
HE2AN-DC110V |
Panasonic Electric Works |
General Purpose / Industrial Relays 25A 110VDC PLUG-IN RELAY POWER |
Data Sheet |
|
|
||||||||||||
