Product Summary

The AGN2004H is a GN-relay which widely applied in telephone exchange, transmission equipment, communications device, measurement device, home appliances, and audio/visual equipment, handheld and portable product.

Parametrics

AGN2004H absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Initial contact resistance, max.(By voltage drop 4.5V DC 1A ): 100mW; (3)Contact material Stationary: AgPd+Au clad; (4)Movable: AgPd; (5)Nominal switching capacity(resistive load): 1A 30V DC, 0.3A 125V AC; (6)Max. switching power(resistive load): 30W, 37.5V A; (7)Max. switching voltage: 110V DC, 125V AC; (8)Max. switching current: 1A.

Features

AGN2004H features: (1)Compact slim body saves space; (2)Outstanding surge resistance; (3)The use of twin crossbar contacts ensures high contact reliability; (4)Increased packaging density; (5)Nominal operating power: 140 mW; (6)Outstanding vibration and shock resistance.

Diagrams

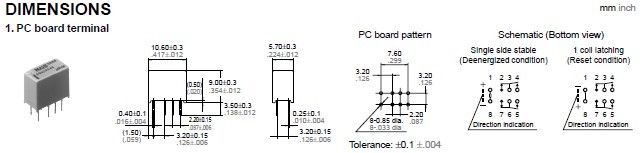

AGN2004H DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AGN2004H
AGN2004H
Panasonic Electric Works
Low Signal Relays - PCB 1A 4.5VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.15
1-25: $2.08
25-50: $1.97
50-100: $1.76
