Product Summary

The AGQ210S03Z is a GQ relay of 2A high capacity ultra small package and flat type. It is widely applied in telephone switchboard, telecommunications equipment, security, measurement equipment, vonsumer electronic and audio visual equipment.

Parametrics

AGQ210S03Z absolute maximum ratings: (1)Contact Form: DPDT (2 Form C); (2)Contact Rating (Current): 2A; (3)Switching Voltage: 125VAC, 110VDC - Max; (4)Coil Type: Latching, Single Coil; (5)Coil Current: 33.3mA; (6)Coil Voltage: 3VDC ; (7)Operate Time: 4ms; (8)Release Time: 4ms; (9)Coil Power: 100 mW; (10)Coil Resistance: 90 Ohms; (11)Operating Temperature: -40℃ to 85℃.

Features

AGQ210S03Z features: (1)High capacity: 2A; (2)Compact flat body saves space; (3)High sensitivity single side stable type (Nominal operating power: 100mW) is available; (4)Outstanding surge resistance; (5)The use of twin crossbar contacts ensures high contact reliability; (6)Increased packaging density; (7)Nominal operating power: 140mW; (8)Outstanding vibration and shock resistance; (9)Sealed construction allows automatic washing.

Diagrams

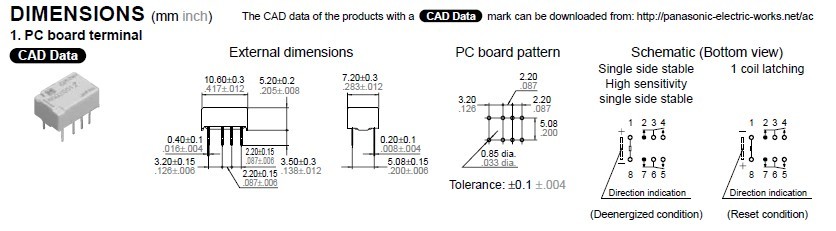

AGQ210S03Z DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AGQ210S03Z
AGQ210S03Z

Panasonic Electric Works

Low Signal Relays - PCB 2 Form C, 3VDC 30VDC SMD S Type 3V

Data Sheet

0-900: $1.66
900-1800: $1.60
1800-2700: $1.55
