Product Summary

The JS1-24V-F is a 10A cubic type power relay. The typical applications of the device include Home appliances, Air conditioner, heater, etc, Office machines, PPC, facsimile, etc and Vending machines.

Parametrics

JS1-24V-F absolute maximum ratings: (1)Contact Rating (Current): 10A; (2)Switching Voltage: 250VAC, 100VDC - Max; (3)Coil Current: 15mA; (4)Coil Voltage: 24VDC; (5)Turn On Voltage (Max): 16.8 VDC; (6)Turn Off Voltage (Min): 2.4 VDC.

Features

JS1-24V-F features: (1)Miniature size with universal termin footprint; (2)High contact capacity: 10 A; (3)TV-5 type available (Standard type); (4)VDE, TüV also approved; (5)Sealed construction for automatic cleaning (Standard type); (6)Class B and F coil insulation type also available; (7)EN60335-1 GWT compliant (Tested by VDE) type available; (8)Surge voltage 6 kV type also available.

Diagrams

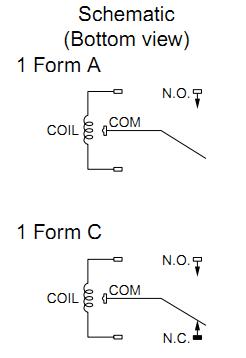

JS1-24V-F schematic
