Product Summary

The AHN22148 is a socket screw term of HN2 relay. It is widely applied in control panels, power supply units, molding machines, machine tools, welding equipment, agricultural equipment, office equipment, vending machines, communications equipment, amusement machines, etc.

Parametrics

AHN22148 absolute maximum ratings: (1)Contact Form: DPDT (2 Form C); (2)Contact Rating (Current): 5A; (3)Switching Voltage: 250VAC, 30VDC - Max; (4)Coil Type: Non Latching; (5)Coil Current: 11mA; (6)Coil Voltage: 48VDC; (7)Turn On Voltage (Max): 33.6VDC; (8)Turn Off Voltage (Min): 4.8VDC; (9)Operate Time: 15ms; (10)Release Time: 5ms; (11)Coil Power: 530mW; (12)Coil Resistance: 4.35K Ohms; (13)Operating Temperature: -40℃ to 70℃.

Features

AHN22148 features: (1)Slim and compact size; (2)High-capacity and high reliability; (3)Environmentally friendly; (4)Slim screw terminal socket and PC board terminal socket; (5)Full line.

Diagrams

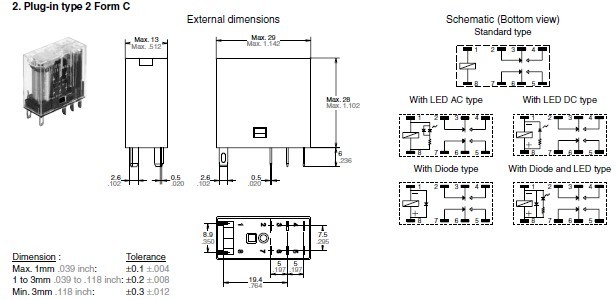

AHN22148 DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AHN22148
AHN22148
Panasonic Electric Works
General Purpose / Industrial Relays Plug-in DC48V w/ LED 2 Form C, 48VDC
Data Sheet
0-1: $5.30
1-25: $4.85
25-50: $4.33
50-100: $3.68
