Product Summary

The ALFG2PF12 is a LF-G power relay. It is ideal for Solar inverter, photovoltaic power generation systems (Solar inverter), uninterruptible power supplies (UPS), home appliances, office equipment.

Parametrics

ALFG2PF12 absolute maximum ratings: (1)Contact Form: SPST-NO (1 Form A); (2)Contact Rating (Current): 31A; (3)Switching Voltage: 250VAC - Max; (4)Coil Type: Non Latching; (5)Coil Current: 116.5mA; (6)Coil Voltage: 12VDC; (7)Turn On Voltage (Max): 8.4VDC; (8)Turn Off Voltage (Min) 1.2VDC ; (9)Operate Time: 20ms; (10)Release Time: 10ms; (11)Coil Power: 1.4W; (12)Coil Resistance: 103 Ohms; (13)Operating Temperature: -40℃ to 60℃.

Features

ALFG2PF12 features: (1)High capacity; (2)Contact gap: 1.5 mm; (3)Coil holding voltage contributes to saving energy of equipment; (4)High insulation resistance; (5)Conforms to various safety standards.

Diagrams

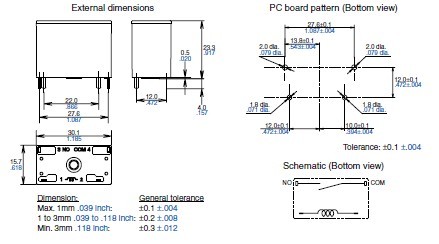

ALFG2PF12 DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ALFG2PF12
ALFG2PF12
Panasonic Electric Works
General Purpose / Industrial Relays 1 FORM A 12VDC HIGH CAPACITY SMD
Data Sheet
0-1: $3.23
1-25: $3.13
25-50: $3.04
50-100: $2.70
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ALFG1PF09
ALFG1PF09
Panasonic Electric Works
General Purpose / Industrial Relays 1 FORM A 9VDC STANDARD TYPE SMD
Data Sheet
0-1: $3.01
1-25: $2.76
25-50: $2.46
50-100: $2.08
ALFG1PF12
ALFG1PF12
Panasonic Electric Works
General Purpose / Industrial Relays 12V 1 FORM A
Data Sheet
0-1: $2.47
1-25: $2.27
25-50: $2.02
50-100: $1.72
ALFG1PF18
ALFG1PF18
Panasonic Electric Works
General Purpose / Industrial Relays 1 FORM A 18VDC STANDARD TYPE SMD
Data Sheet
0-1: $2.72
1-25: $2.49
25-50: $2.22
50-100: $1.88
ALFG1PF24
ALFG1PF24
Panasonic Electric Works
General Purpose / Industrial Relays 24V 1 FORM A
Data Sheet
0-1: $2.93
1-25: $2.69
25-50: $2.39
50-100: $2.17
ALFG2PF09
ALFG2PF09
Panasonic Electric Works
General Purpose / Industrial Relays 1 Form A Hh Cap 31A 9volts
Data Sheet
0-1: $4.48
1-25: $4.11
25-50: $3.66
50-100: $3.10
ALFG2PF12
ALFG2PF12
Panasonic Electric Works
General Purpose / Industrial Relays 1 FORM A 12VDC HIGH CAPACITY SMD
Data Sheet
0-1: $3.23
1-25: $3.13
25-50: $3.04
50-100: $2.70
