Product Summary
The CB1AH-12V is a high power automotive relay.
Parametrics
CB1AH-12Vabsolute maximum ratings: (1)Relay Type: Automotive; (2)Contact Form: SPST-NO (1 Form A); (3)Contact Rating (Current): 70A; (4)Switching Voltage: 14VDC Nom; (5)Coil Type: Non Latching; (6)Coil Current: 150mA; (7)Coil Voltage: 12VDC; (8)Turn On Voltage (Max) 7 VDC; (9)Turn Off Voltage (Min) 1.2 VDC; (10)Mounting Type: Socketable; (11)Packaging: Bulk; (12)Contact Material: Silver Alloy, Cadmium Free; (13)Operate Time: 15ms; (14)Release Time: 15ms; (15)Coil Power: 1.8W; (16)Coil Resistance: 80Ohms; (17)Operating Temperature: -40℃ to 85℃.
Features
CB1AH-12V features: (1)40 A rating at 85℃ 185°F; (2)ISO type terminals; (3)High shock resistance for drop test requirements(2 meters 6.6 feet); (4)Low temperature rise all current carrying material is copper; (5)Quick connect and PC board type.

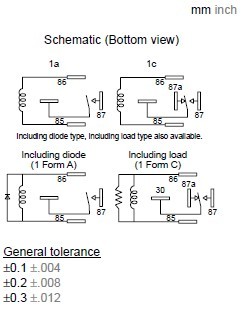

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CB1AH-12V |
Panasonic Electric Works |
General Purpose / Industrial Relays 70A 12VDC 1 FORM A QC |
Data Sheet |
|
|
||||||||||||
