Product Summary

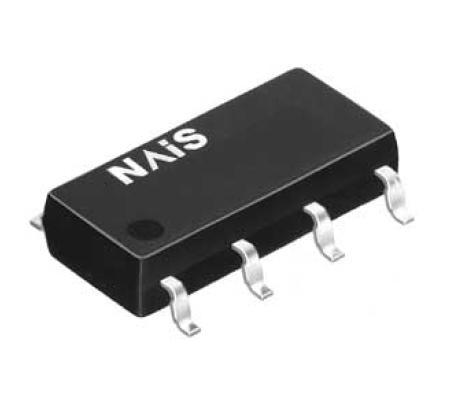

The AQW282EH is a PhotoMOS relay.

Parametrics

AQW282EH absolute maximum ratings: (1)Circuit DPST (2 Form A); (2)Output Type: AC, DC; (3)On State Resistance: 2.5Ohm; (4)Load Current: 400mA; (5)Voltage Input: 1.14VDC; (6)Voltage Load: 0 to 60V; (7)Mounting Type: Through Hole; (8)Termination Style: PC Pin; (9)Package / Case: 8-DIP (0.300", 7.62mm); (10)Packaging: Tube; (11)Supplier Device Package: 8-DIP Board Layout.

Diagrams

AQW282EH Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AQW282EH
AQW282EH

Panasonic Electric Works

Solid State Relays 60v 500mA DIP Form A Norm-Open

Data Sheet

0-1: $2.53
1-25: $2.31
25-50: $2.06
50-100: $1.75
AQW282EHA
AQW282EHA

Panasonic Electric Works

Solid State Relays 60v 500mA DIP Form A Norm-Open

Data Sheet

0-1: $2.53
1-25: $2.31
25-50: $2.06
50-100: $1.75
AQW282EHAZ
AQW282EHAZ

Panasonic Electric Works

Solid State Relays 60v 500mA DIP Form A Norm-Open

Data Sheet

0-1000: $1.49
1000-3000: $1.44
3000-5000: $1.36
AQW282EHAX
AQW282EHAX

Panasonic Electric Works

Solid State Relays 60v 500mA DIP Form A Norm-Open

Data Sheet

0-1000: $1.49
1000-3000: $1.44
3000-5000: $1.36
