Product Summary

The DS2Y-S-DC24V is a MINIATURE RELAY. It is widely used in telecommunication equipment, office equipment, computer peripherals, security alarm systems and medical equipment

Parametrics

DS2Y-S-DC24V absolute maximum ratings: (1)Contact Form: DPDT (2 Form C); (2)Contact Rating (Current): 2A; (3)Switching Voltage: 250VAC, 220VDC - Max; (4)Coil Type: Non Latching; (5)Coil Current: 8.3mA; (6)Coil Voltage: 24VDC; (7)Turn On Voltage (Max): 16.8VDC; (8)Turn Off Voltage (Min): 2.4VDC; (9)Contact Material: Silver (Ag), Gold (Au); (10)Operate Time: 4ms; (11)Release Time: 3ms; (12)Coil Power: 200mW; (13)Coil Resistance: 2.88KOhms; (14)Operating Temperature: -40℃ to 70℃; (15)Contact Rating (Current): 2A.

Features

DS2Y-S-DC24V features: (1)2 Form C contact; (2)High sensitivity-200 mW nominal operating power; (3)High breakdown voltage 1500 V FCC surge between open contacts; (4)DIP-2C type matching 16 pin IC socket; (5)Sealed construction.

Diagrams

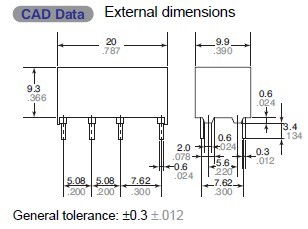

DS2Y-S-DC24V External dimensions
